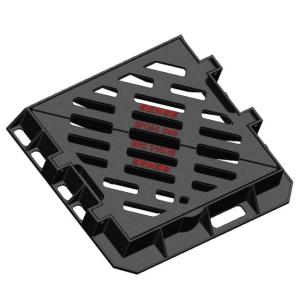

EN1433 Gully Grating Double Triangle , Cast Iron Gully Grate STEADY POWER Model
Ductile Iron Gully Garting Double Triangle
If you see a grate in the road, it'll usually be in the kerbside. The rain runs down the kerbside due to the camber of the road - this is why the Aquamax is so good at clearing rain off our roads as it's designed to gulp it up (greedy old Aqua-max)
Applications:
Class Apply to Bearing Remarks
EN124-A15 Areas where only passed by Pedestrians and Bicycles. 15KN
EN124-B125 Footways, parking lot or similar areas. 125KN HOT-SELLING
EN124-C250 The edge combinative area of vehicle road and the pavement. 250KN
EN124-D400 Vehicle area and urban arterial road. 400KN HOT-SELLING
EN124-E600 Shipping port and parking apron area. 600KN
EN124-F900 Airplane taxiway and huge dock. 900KN
Specifications:
| GULLY GRATING DOUBLE TRIANGLE Material: Ductile iron EN GJS500-7 |
|||||||
| Item code | CLASS | Spec | External dimensions mm |
Clear opening mm |
Height mm |
unit weight (kgs/set) | Accessories |
| GG 450-450 DT | D400 | 450x450 | 537x600 | 450x450 | 150 | 51.5 | M8x60 Bolts x 4 |
| GG 700-700 DT | D400 | 800x870 | 800x870 | 700x700 | 100 | 103.2 | M8x60 Bolts x 4 |
Competitive Advantage:
Put damage:
This is the biggest characteristic of ductile iron manhole covers, ductile iron manhole covers can be heavy pressure 36T/60T, light can be confined 21T. Even if the load pressure exceeds its limit, ductile iron manhole cover cast iron manhole cover is not as common as broken, but a slight deformation of the car and pedestrians has a certain security.
Anti-shock:
only through the mouth of the Manhole set to U-shaped, with a T-type synthetic rubber, U-shaped slot embedded in the contact Manhole covers and the process in order to cushion and reduce the vibration force.
